MAN 3T Small Water FoamTank Fire Fighting Truck Specialized Vehicle China Manufacturer

Name: MAN 3T Small Water FoamTank Fire Fighting Truck Specialized Vehicle China Manufacturer
Brand: CXFIRE
Price: 350 USD

Wholesale MAN 3T Small Water FoamTank Fire Fighting Truck Specialized Vehicle China Manufacturer from china suppliers

Brand Name : CXFIRE

Model Number : SXF5122GXFPM30

Certification : CCC, CE, EN, NFPA

Place of Origin : China

MOQ : 1 Unit

Price : USD350,000-USD380,000

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 800 units per year

Delivery Time : 6-8 months

Packaging Details : Standard Export Package and Delivery by Bulk Carrier or Ro-Ro Ship

Overall Dimension : 6950mm×2430mm×3300mm

Weight : 11500kg

Chassis : Germany MAN, 4X2

Engine : 184Kw

Cabin : Double row cabin with 4 doors

Superstructure : Aluminum Alloy Welded Structure

Tank : 2500L Water & 500L Foam . PP material

Water Pump : 60L/s@10bar

Roof Water Monitor : 48L/s@10bar with 70m Shoot Range

Painting : Red Color, U.S. PPG

Contact Now

MAN Small Foam Fire Truck China Manufacturer

1. The Whole Fire Truck

Model: SXF5122GXFPM30
Overall Dimension: 6950mm×2430mm×3300mm
Full Load Weight: 11500kg
Number of the Crew: 6 (include driver)
Max. Speed: 90km/h
Emission standard: Euro VI
Capacity: 2500L Water & 500L Foam, PP composite material liquid tank
Fire pump flow rate: 60L/s @ 10bar
Fire monitor: 48L/s flow rate, 70m shoot range

2. Main Components of Fire Truck

2.1	Fire Pump
2.1.1	Brand	Ziegler
2.1.2	Model	CB10/60-Z
2.1.3	Rated Flow Rate	60L/s @ 10bar
2.1.4	Vacuum Pump	Electric Vacuum Pump
2.1.5	Water diversion form	Scraper type
2.1.6	Suction Height	3m
2.1.7	Priming Time	≤60s
.1.8	Location	Rear-mounted
2.2	Fire Monitor
2.2.1	Brand	Ziegler
2.2.2	Model	PLKD8/48-Z
2.2.2	Flow Rate	48L/s @ 10bar
2.2.3	Shoot Range	Water≥70m, Foam≥60m
2.2.4	Location	On the top of the tank
2.2.5	Control Manner	Manual
2.2.6	Horizontal Rotation Angle	0°~330°
2.2.7	Pitch Rotation Angle	-15°~60°
2.3	Liquid Tank
2.3.1	Capacity	Water 2500L, Foam 500L
2.3.2	Material	PP composite material and Never Rust
2.3.3	Structure	2 Tank Manhole; 2 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 foamtank Drain Outlets with Valves; 1 tank Drain Outlets with Valves.

3. Control Panel for Fire Fighting System
3.1 Various types of control modules can be installed according to the vehicle configuration, and all fire-fighting components are fully electronically controlled, using PLC intelligent control; all buttons, switches and indicators on the control panel are marked with English signs; prominent locations are provided with piping layout and Brief operating instructions. The panel adopts a waterproof and dust-proof design mode, and the protection level can reach IP56.
3.2 Language: English

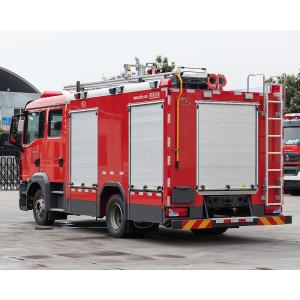

4. Reference Pictures

MAN 3T Small Water FoamTank Fire Fighting Truck Specialized Vehicle China Manufacturer
